4 DrawerSingle Lock & Multi-Lock

4 Drawer

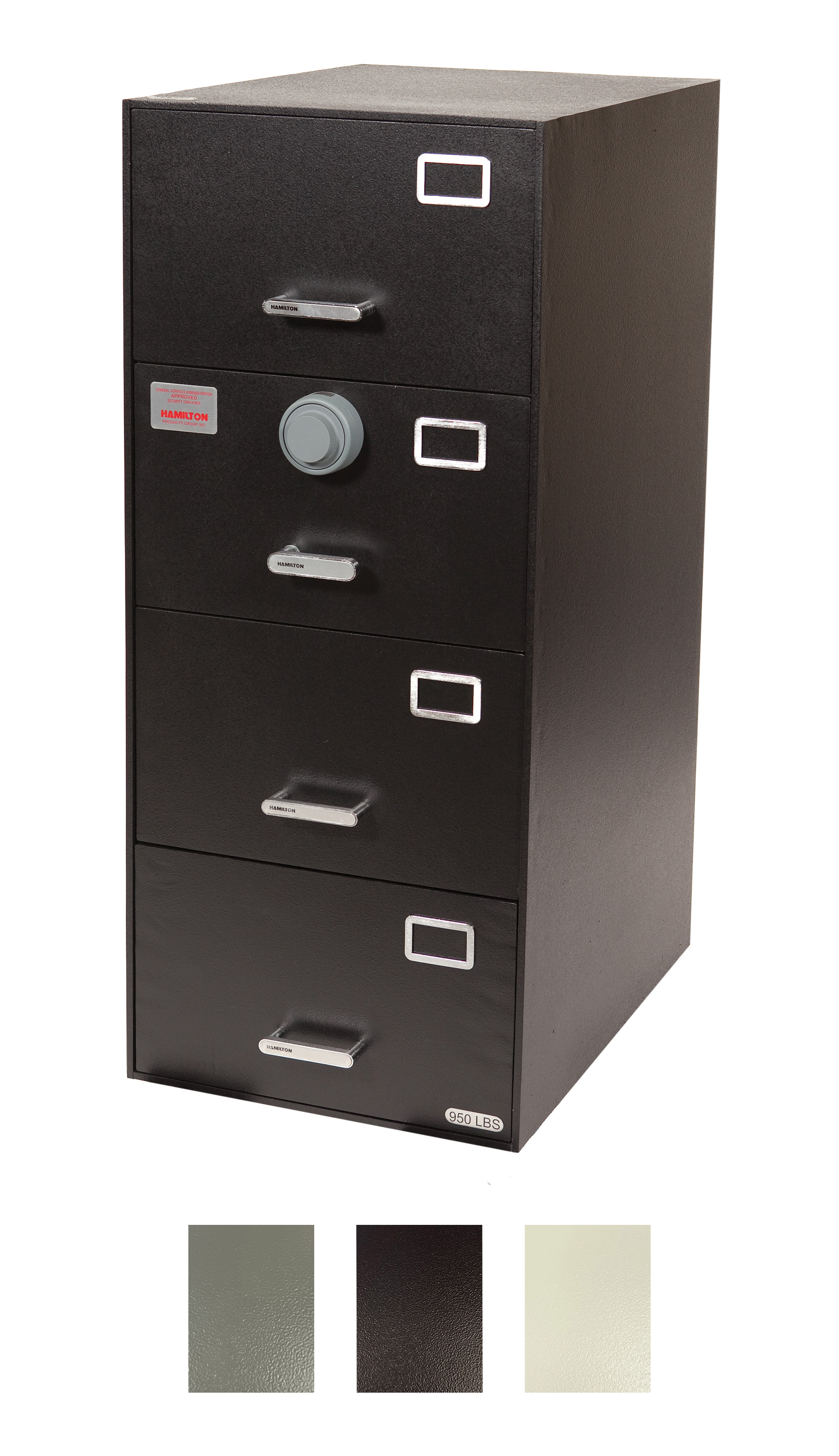

Class 5 Security Filing Cabinets are designed to resist covert, surreptitious and forced entry and are approved for the storage of all levels of classified information, in addition to narcotics, funds and other valuables.

Models

Class 5 Legal Size with Kaba Mas X-10 LOCK

7110-00-082-6112 - Class 5, Four (4) Drawer, Legal Size w/ Single Lock, Gray
7110-01-012-8740- Class 5, Four (4) Drawer, Legal Size w/ Single Lock, Black
7110-01-012-8741 - Class 5, Four (4) Drawer, Legal Size w/ Single Lock, Parchment

7110-01-563-1689 - Class 5, Four (4) Drawer, Legal Size w/ MultiLock, Gray
7110-01-563-1699- Class 5, Four (4) Drawer, Legal Size w/ MultiLock, Black                                                                                                                                                                                                                                                            7110-01-563-1700 - Class 5, Four (4) Drawer, Legal Size w/ MultiLock, Parchment



Class 5 Legal Size with S&G 2740B Lock

7110-01-614-5430- Class 5, Four (4) Drawer, Legal Size w/ Single Lock, Gray
7110-01-614-5434 - Class 5, Four (4) Drawer, Legal Size w/ Single Lock, Black
7110-01-614-5440 - Class 5, Four (4) Drawer, Legal Size w/ Single Lock, Parchment

7110-01-614-5423 - Class 5, Four (4) Drawer, Legal Size w/ MultiLock, Gray
7110-01-614-5424 - Class 5, Four (4) Drawer, Legal Size w/ MultiLock, Black                                                                                                                                                                                                                                                            7110-01-614-5425 - Class 5, Four (4) Drawer, Legal Size w/ MultiLock, Parchment



  • Single Lock Cabinet Specifications
  • Multi-Lock Cabinet Specifications
  • Lock Specification
  • GSA Approved Label
  • Shipping & Delivery





DIMENSIONS FOR CLASS 5 LEGAL SIZE FILES Single Lock

Description

OUTSIDE

INSIDE DRAWER

Weight

(Shipping)

Shipping Cube

High

Wide

Deep

High

Wide

Deep



4 Drawer Capacity

48 13/16"

20 13/16"

28 1/2"

10 1/4 "

15 1/4 "

24 3/4 "

980 lbs.

24.9



DIMENSIONS FOR CLASS 5 LEGAL SIZE FILES MultiLock

Description

OUTSIDE

INSIDE DRAWER

Weight

(Shipping)

Shipping Cube

High

Wide

Deep

High

Wide

Deep



4 Drawer Capacity

48 13/16"

20 13/16"

28 1/2"

10 1/4 "

15 1/4 "

24 3/4 "

1060 lbs.

24.9







Amendment 1 of Federal Specification AA-F-358H requires that all locks used on GSA Approved Security Containers, except Field Safes, weapons cabinets and armory vault doors meet Federal Specification FF-L-2740.

GENERAL SERVICES ADMINISTRATION APPROVED SECURITY CONTAINER, HAMILTON PRODUCTS GROUP, INC

Look for the Red Label

F.O.B. ORIGIN: Amelia, OH 45102
Delivery area to lower 48 contiguous States, Washington D.C., Alaska, Hawaii & Puerto Rico

All products are shipped F.O.B. Origin

Additional Charges for Inside & Sidewalk Delivery
Additional charges for sidewalk or inside delivery. It is the responsibility of the recipient to remove the equipment from the truck. If you would like to request assistance in placing your order inside an office, you must specify "INSIDE DELIVERY REQUESTED" on your order. This additional service is at the customer's expense. You may select your own cartage or Van Line, or we can assist you. Hamilton Products Group, Inc. cannot assume responsibility for the charges and the exact expense will be billed to the purchaser

Additional Charges
Export Packing Charge: Priced upon request
All additional delivery services are billed at the customer's expense
