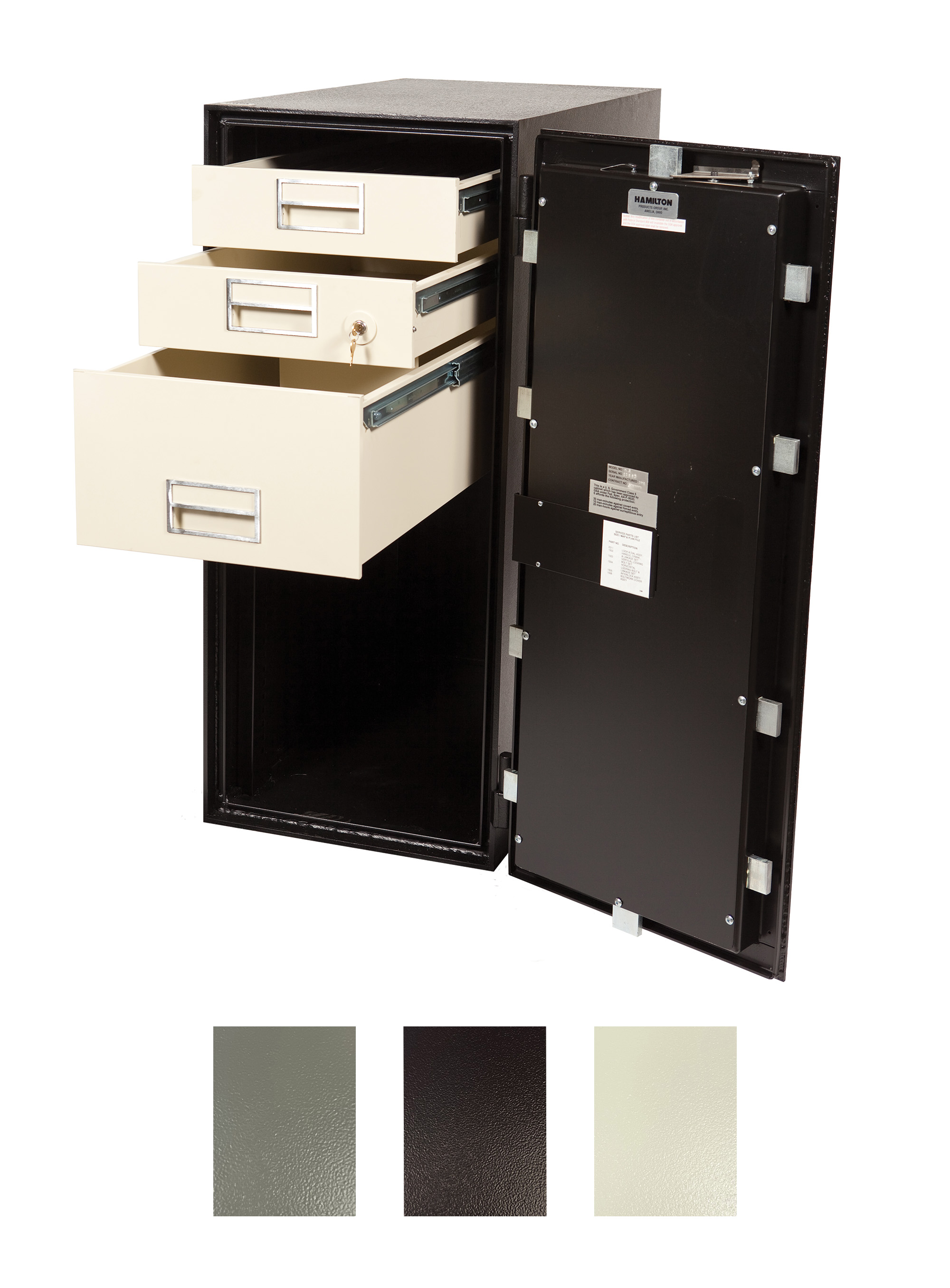

Map & Plan
GSA Approved Class 5 Map and Plan cabinets are ideal for storing all levels of classified information, in addition to narcotics, funds and other valuables. A wide variety of interior accessories make this the most versatile cabinet for your storage needs.
Type I
Dimensions: 51 1/4" H x 22" W x 39" D
Approx. Shipping Weight: 1230 lbs
Shipping Cube: 50.26
Without channel base assembly
With hangers and suspensions (comes with plan hold rack assembly)
Models
Class 5 Map & Plan Cabinets Type 1 with Kaba Mas X-10 Lock
7110-01-726-8004 - Class 5 Map & Plan Cabinet, Size I, Type I, Gray
7110-01-726-7991 - Class 5 Map & Plan Cabinet, Size I, Type I, Black
7110-01-726-8029 - Class 5 Map & Plan Cabinet, Size I, Type I, Parchment
Class 5 Map & Plan Cabinets Type 1 with S&G 2740B Lock
7110-01-726-8013 - Class 5 Map & Plan Cabinet, Size I, Type I, Gray
7110-01-726-7992 - Class 5 Map & Plan Cabinet, Size I, Type I, Black
7110-01-726-8025 - Class 5 Map & Plan Cabinet, Size I, Type I, Parchment
Only Accessory available is a caster base.
Type II
Dimensions: 51 1/4" H x 22" W x 39" D
Approx. Shipping Weight: 1230 lbs
Shipping Cube: 50.26
Without channel base assembly
Without hangers and suspensions
Vertical channels (set of 4 furnished w/cabinets) required for installation of optional lockers, drawers or shelves
Models
Class 5 Map & Plan Cabinets Type 2 with Kaba Mas X-10 Lock
7110-01-726-8008 - Class 5 Map & Plan Cabinet, Size I, Type II, Gray
7110-01-726-7989 - Class 5 Map & Plan Cabinet, Size I, Type II, Black
7110-01-726-8022 - Class 5 Map & Plan Cabinet, Size I, Type II, Parchment
Class 5 Map & Plan Cabinets Type 2 with S&G 2740B Lock
7110-01-726-8011 - Class 5 Map & Plan Cabinet, Size I, Type II, Gray
7110-01-726-7988 - Class 5 Map & Plan Cabinet, Size I, Type II, Black
7110-01-726-8028 - Class 5 Map & Plan Cabinet, Size I, Type II, Parchment
Downloadable Brochure
Optional Interiors
Plan Hold Rack & Assembly
- Part Number: MPPHRA103
- Shipping Wt. 50 lbs
- Shipping Cube 1.2
Security Locker w/ GR 2 Locks S&G 6730
- Part Number: MPSL106
- Shipping Wt. 88 lbs
- Shipping Cube 4.0
- Inside Dimension: 11 1/8" h x 17 3/4" w x 31" d
Adjustable Shelf
- Part Number: MPAS105
- Shipping Wt. 19 lbs
- Shipping Cube .7
- Dimension: 18" w x 33 1/2" d
Correspondence Drawer
- Part Number: MPCD108
- Shipping Wt. 34 lbs
- Shipping Cube 5.8
- Inside Dimension: 10 5/16" h x 16 1/2" w x 32 1/2" d
Caster Base for MAP/ PLAN Cabinet
- Part Number: MPCB
- Shipping Wt. 43 lbs
- Shipping Cube 6.0
Shallow Drawer
- Part Number: MPSD107 5 3/16" h
- Shipping Wt. 25lbs
- Inside Dimension: 5" h x 16 1/2" w x 32 1/2" d
- additional cost for Keylock
- additional cost for Cover Plate (fixed)
- Class 5 Protection - Security Level
- Lock Specification
- Additional Accessories
- Shipping & Delivery
This is a U.S. Government class 5 cabinet which has been approved by GSA under Federal Specification AA-F-358H. It affords the following protection:
- 30 man-minutes against covert entry.
- 20 man - hours against surreptitious entry.
- 10 man - minutes against forced entry.
Amendment 1 of Federal Specification AA-F-358H requires that all locks used on GSA Approved Security Containers, except Field Safes, weapons cabinets and armory vault doors meet Federal Specification FF-L-2740.
- Cabinets are equipped with vertical channels for the installation of optional interior components.
- Cabinets will accommodate four lockers or large drawers, or nine shallow drawers.
- Drawer's features full depth ball-bearing slides for smooth operation and complete access to each drawer.
- Large live locking bolts on all four edges of door for maximum security.
 |
 |
MAP & PLAN CABINETS MAY BE COMPLETELY FILLED WITH DRAWERS AND SECURITY LOCKERS IN THE FOLLOWING COMBINATIONS:
|
Number of Correspondence Drawers |
4 |
3 |
3 |
2 |
2 |
2 |
1 |
1 |
1 |
1 |
0 |
0 |
0 |
0 |
0 |
|
Number of Security Lockers |
0 |
1 |
0 |
2 |
1 |
0 |
3 |
2 |
1 |
0 |
4 |
3 |
2 |
1 |
0 |
|
Number of Shallow Drawers |
1 |
0 |
3 |
0 |
2 |
5 |
0 |
2 |
4 |
7 |
0 |
2 |
4 |
6 |
9 |
|
S.I. No. |
Contract Item No. |
SIN |
Description |
Shipping Weight |
Shipping Cube |
|
489-103 |
40 |
MPAS 105 |
Adjustable Shelf 18"w x 33 1/2 "d (not shown) |
19 |
.7 |
|
489-103 |
41 |
MPSL 106 |
Security Locker 11 1/8 "h x 17 3/4 " x 31"d inside. This security locker is a self-contained unit with a steel plate door secured by a U.L. listed group II combination lock. |
88 |
4.0 |
|
489-103 |
42 |
MPSD 107 |
Shallow Drawer 5 3/16" high with full-depth heavy-duty ball bearing slides. Inside dimensions are 5"h x 16 1/2"w x 32 1/2"d. |
25 |
2.9 |
|
489-103 |
43 |
MPCD 108 |
Correspondence or Storage Drawer 10 1/2" high with ball bearing slides. Inside dimensions 10 5/16"h x 16 1/2w x 32 1/2"d. Drawer equipped with follower block. |
34 |
5.8 |
|
489-103 |
58 |
MPCB 125 |
Caster Base (not shown) |
60 |
6.0 |
F.O.B. ORIGIN: Milford, Ohio 45150
Delivery area to lower 48 contiguous States, Washington D.C., Alaska, Hawaii & Puerto Rico
All products are shipped F.O.B. Origin
Additional Charges for Inside & Sidewalk Delivery
Additional charges for sidewalk or inside delivery. It is the responsibility of the recipient to remove the equipment from the truck. If you would like to request assistance in placing your order inside an office, you must specify "INSIDE DELIVERY REQUESTED" on your order. This additional service is at the customer's expense. You may select your own cartage or Van Line, or we can assist you. Hamilton Products Group, Inc. cannot assume responsibility for the charges and the exact expense will be billed to the purchaser
Additional Charges
Export Packing Charge: Priced upon request
All additional delivery services are billed at the customer's expense
