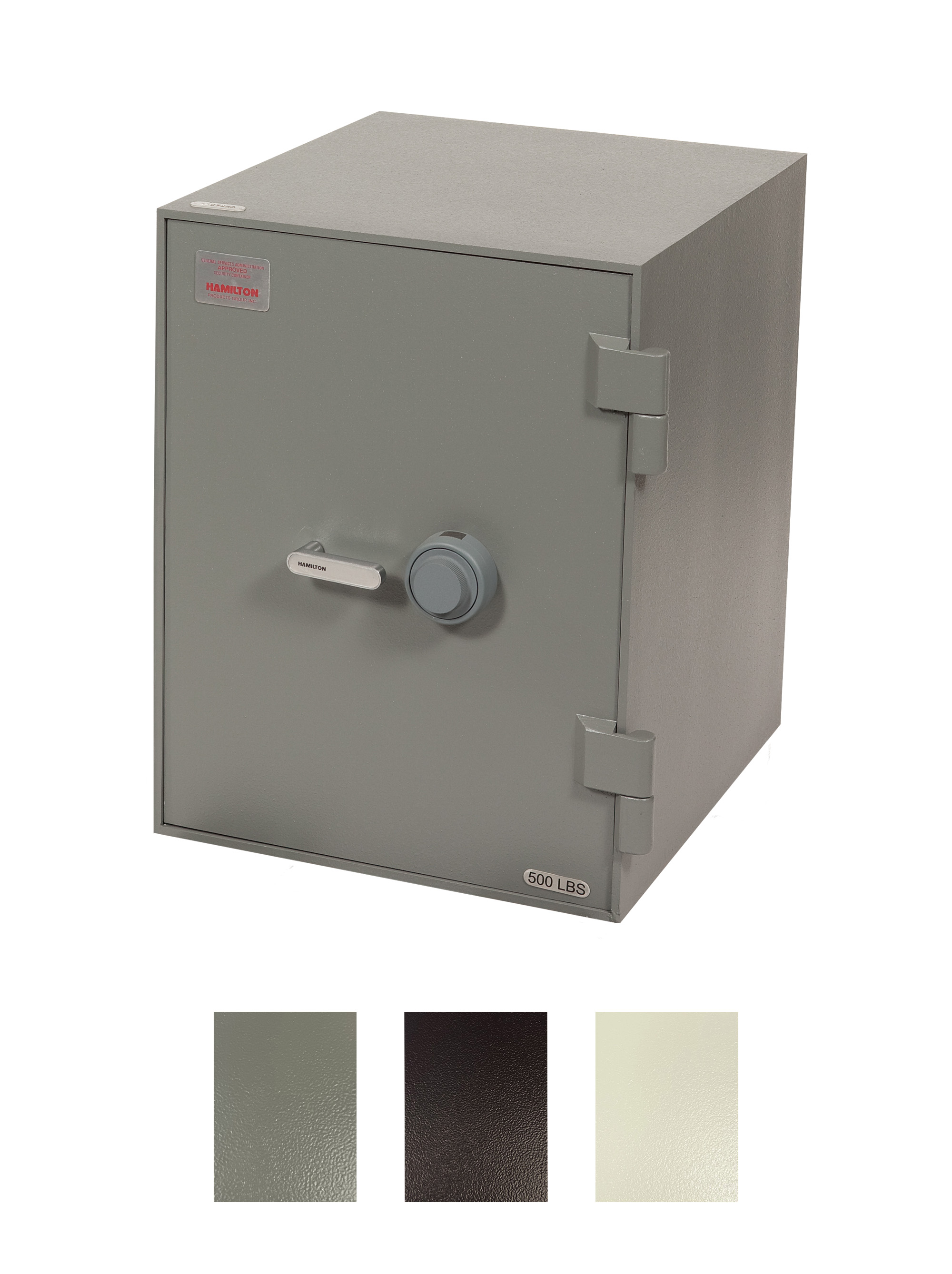

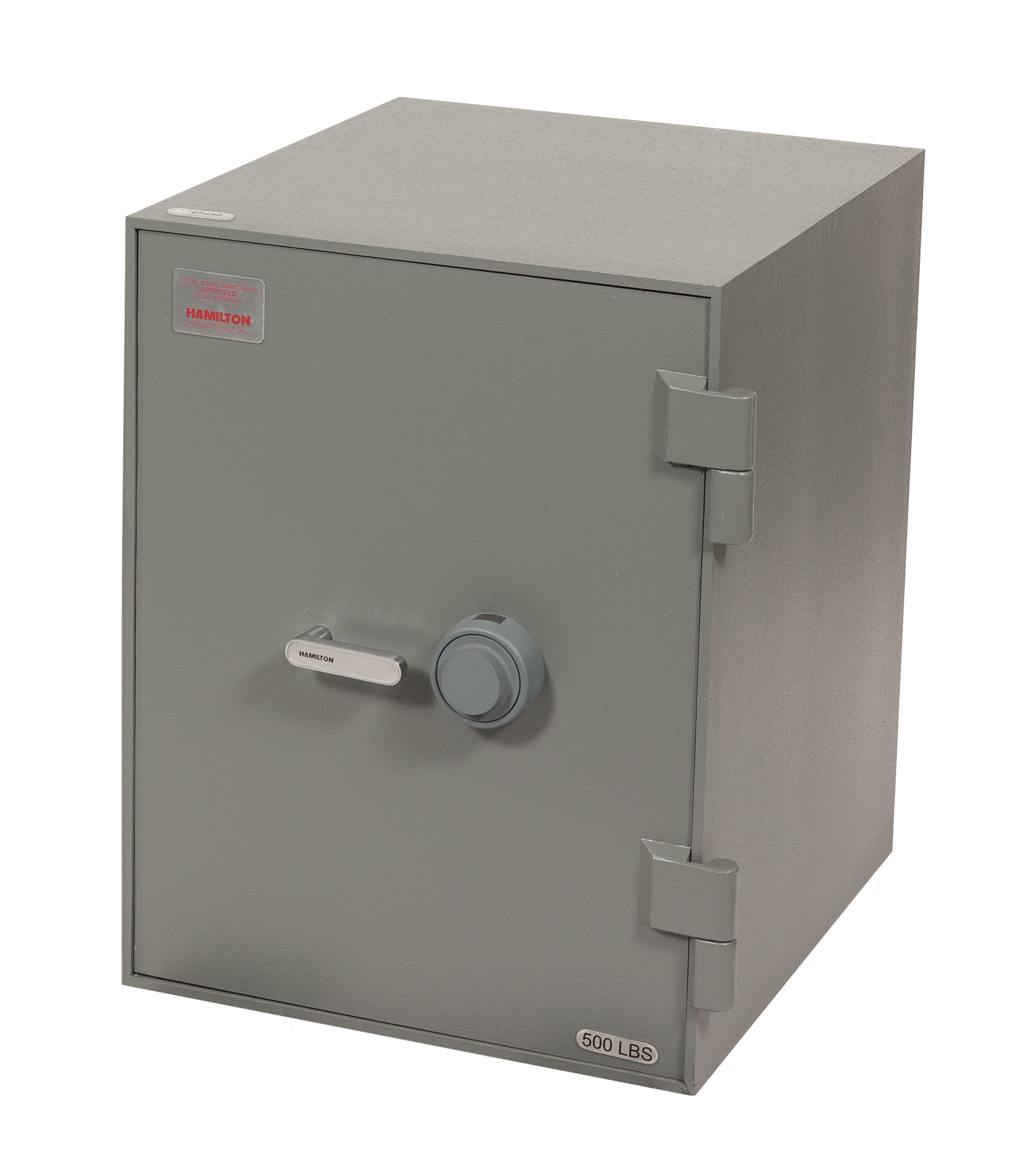

General Purpose Cabinet Size IV

General Purpose Cabinet Size IV



GSA Approved Class 5 general purpose containers are ideal for storing all levels of classified information and materials. A wide variety of interior accessories make this the most versatile cabinet for your storage needs.



 *Empty cabinets are equipped with vertical channels for the installation of optional equipment.*



Size IV

Outside Dimensions: 28 1/2" H x 22" W x 24" D

Inside Dimensions: 25 3/4" H x 18 1/4" W x 20 1/2" D

Approx. Shipping Weight: 520 lbs.

Shipping Cube: 14.7

Without Hangers and Suspension

Without Channel Base Assembly



Models

Class 5 General Purpose Empty Cabinet with Kaba Mas X-10 Lock

7110-01-309-2032 - Class 5 General Purpose Empty Cabinet, Size IV, Gray
7110-01-309-2033 - Class 5 General Purpose Empty Cabinet, Size IV, Black
7110-01-309-2034 - Class 5 General Purpose Empty Cabinet, Size IV, Parchment



Class 5 General Purpose Empty Cabinet with S&G 2740B Lock

7110-01-614-5809 - Class 5 General Purpose Empty Cabinet, Size IV, Gray
7110-01-614-5812 - Class 5 General Purpose Empty Cabinet, Size IV, Black
7110-01-614-5829 - Class 5 General Purpose Empty Cabinet, Size IV, Parchment



*Optional Interiors



GP4SL128 Security Locker

Inside Dimensions: 11 1/8"h x 17 3/4" w x 16" d

Wt: 54 lbs



GP4SD129 Security Drawer 5 3/16" h

Inside Dimensions: 5" h x 16 1/2" w x 17 1/2" d

Wt: 16 lbs



GP4CD130 Correspondence Drawer

Inside Dimensions:  10 5/16" h x 16 1/2" w x 17 1/2" d

Wt:19 lbs



GP4AS127 Adjustable Shelf 18" w x 18 1/2" d

Inside Dimensions: 3/4" h x 18" w x 18 1/2" d

Wt: 10  lbs





  • Class 5 Protection-Security Level
  • Lock Specification
  • Shipping & Delivery

This is a U.S. Government Class 5 cabinets which have been approved by GSA under Federal Spec. AA-F-358.  It affords the following security protection:

  • 20 man-hours against surreptitious entry
  • 30 man-minutes against covert entry.
  • 10 man-minutes against forced entry.

Amendment 1 of Federal Specification AA-F-358H requires that all locks used on GSA Approved Security Containers, except Field Safes, weapons cabinets and armory vault doors meet Federal Specification FF-L-2740.

F.O.B. ORIGIN: Milford, Ohio 45150
Delivery area to lower 48 contiguous States, Washington D.C., Alaska, Hawaii & Puerto Rico

All products are shipped F.O.B. Origin

Additional Charges for Inside & Sidewalk Delivery
Additional charges for sidewalk or inside delivery. It is the responsibility of the recipient to remove the equipment from the truck. If you would like to request assistance in placing your order inside an office, you must specify "INSIDE DELIVERY REQUESTED" on your order. This additional service is at the customer's expense. You may select your own cartage or Van Line, or we can assist you. Hamilton Products Group, Inc. cannot assume responsibility for the charges and the exact expense will be billed to the purchaser

Additional Charges
Export Packing Charge: Priced upon request
All additional delivery services are billed at the customer's expense
