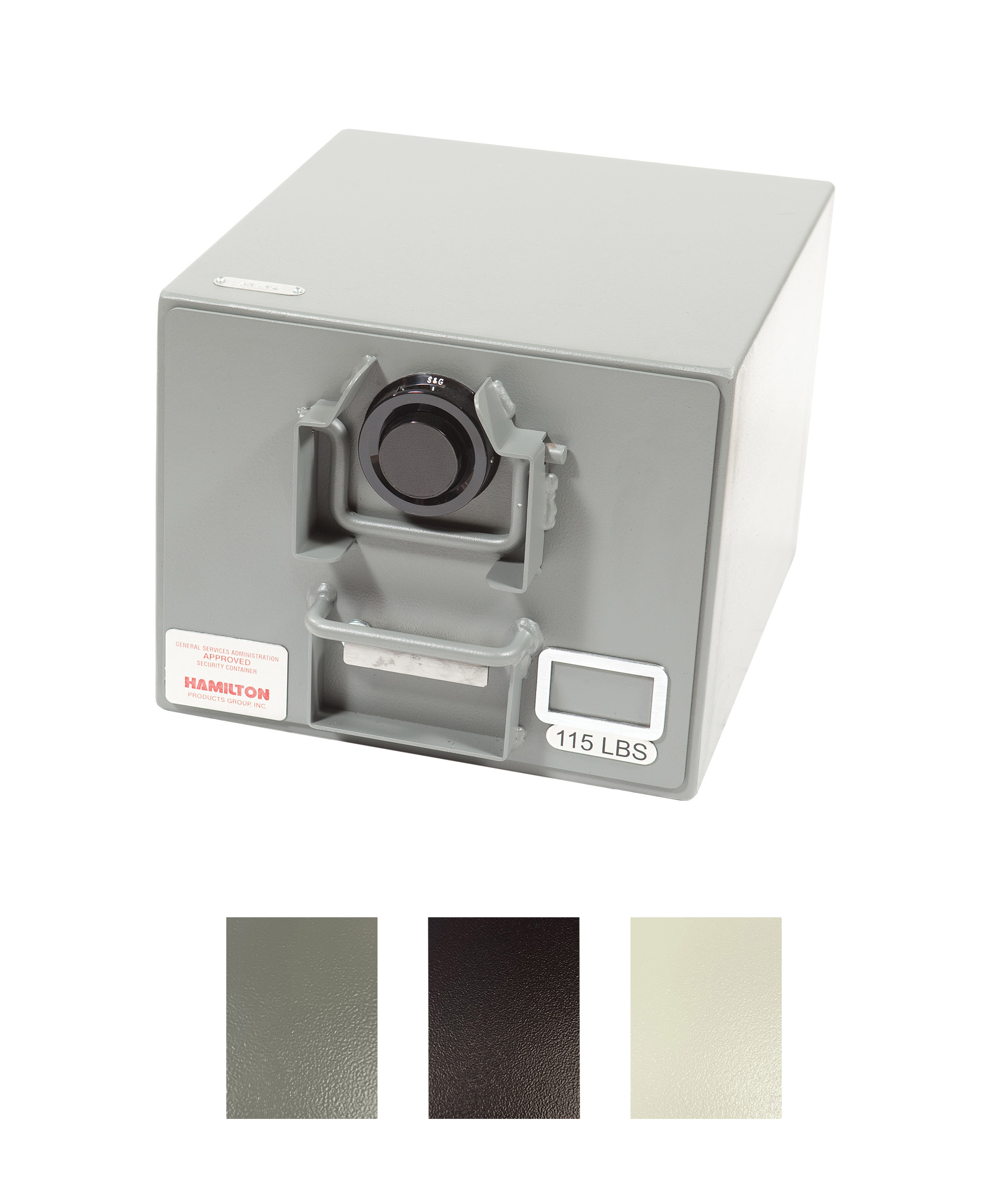

Field Safe
Specially designed and constructed for use by Military Units in the field. A steel shield protects the 3 position, S&G 2937 Group 1 combo lock. Carrying handles front and rear.
Class 6 Field Safes
Field Safe Single Lock, S&G 2937 GR1
7110-00-919-9306 - Class 6, One Drawer, w/ Single Lock, Gray
7110-01-015-2851 - Class 6, One Drawer, w/ Single Lock, Black
7110-01-015-2852 - Class 6, One Drawer, w/ Single Lock, Parchment
Field Safe Dual Lock, S&G 2937 GR1
7110-01-264-8483 - Class 6, One Drawer, w/ Dual Lock, Gray
7110-01-309-2011 - Class 6, One Drawer, w/ Dual Lock, Black
7110-01-309-2012 - Class 6, One Drawer, w/ Dual Lock, Parchment
Downloadable Brochure
- Class 6 Field Safe Specifications | Single Lock and Dual Lock
- Arms Room Key Locker Specifications
- Lock Specification
- GSA Approved Label
- Shipping & Delivery
|
DIMENSIONS CLASS 6 FIELD SAFES |
|||||||||
|
Description |
OUTSIDE |
INSIDE DRAWER |
Weight (Shipping) |
Shipping Cube |
|||||
|
High |
Wide |
Deep |
High |
Wide |
Deep |
||||
|
Single Lock Field Safe |
12 3/8 " |
15 7/16" |
17 1/8 " |
10 1/4 " |
12 1/4 " |
13 7/8 " |
125 lbs. |
3.9 |
|
|
Dual Lock Field Safe |
12 3/8 " |
15 7/16" |
17 1/8 " |
10 1/4 " |
12 1/4 " |
13 7/8 " |
140 lbs. |
3.9 |
|
Key Lockers used in conjunction with a GSA Approved class 6 Field Safe or Special Size 1 Drawer Cabinet provides secure compartmentalization of Arms Room Keys.
|
Contract |
Model No. |
S.I. No. |
Description for Options |
Shipping Weight |
Shipping Cube |
|
65 |
BP 101 |
489-101 |
Base Plate - One required for each drawer. |
8 lbs. |
.1 |
|
66 |
KL 102 |
489-102 |
Key Locker |
11 lbs. |
.2 |
|
DIMENSIONS |
||||||||
|
DESCRIPTION |
OUTSIDE |
INSIDE |
||||||
|
High |
Wide |
Deep |
High |
Wide |
Deep |
|||
|
Base Plate |
1/2 " |
12 1/8 " |
13 5/8 " |
|||||
|
Key Locker |
7" |
4" |
6 3/4 " |
6 1/8 " |
3 1/4 " |
6" |
||
Amendment 1 of Federal Specification AA-F-358H requires that all locks used on GSA Approved Security Containers, except Field Safes, weapons cabinets and armory vault doors meet Federal Specification FF-L-2740. Locks on all Field Safes are S&G Model 2937 GR 1. New lock specification FF-L-2740 does not apply to field safe. A steel shield protects the 3 position, Group 1 combo lock. Carrying handles front and rear.
This is a U.S. Government class 6 cabinet which has been approved by GSA under Federal Specification AA-F-00363D. It affords the following protection:
- 30 man-minutes against covert entry.
- 20 man - hours against surreptitious entry.
- No forced entry requirements.
GENERAL SERVICES ADMINISTRATION APPROVED SECURITY CONTAINER, HAMILTON PRODUCTS GROUP, INC
Look for the Red Label
F.O.B. ORIGIN: Milford, Ohio 45150
Delivery area to lower 48 contiguous States, Washington D.C., Alaska, Hawaii & Puerto Rico
All products are shipped F.O.B. Origin
Additional Charges for Inside & Sidewalk Delivery
Additional charges for sidewalk or inside delivery. It is the responsibility of the recipient to remove the equipment from the truck. If you would like to request assistance in placing your order inside an office, you must specify "INSIDE DELIVERY REQUESTED" on your order. This additional service is at the customer's expense. You may select your own cartage or Van Line, or we can assist you. Hamilton Products Group, Inc. cannot assume responsibility for the charges and the exact expense will be billed to the purchaser
Additional Charges
Export Packing Charge: Priced upon request
All additional delivery services are billed at the customer's expense
