Rifle Carts

Rifle Carts

Order Unit Complete: Two Ammo Trays with Hasps are installed in top of unit for storage of pistols or ammunition when a 489-124 Pull-Out Rifle Cart and Class 5 Cabinet are ordered at the same time.

Standard Rifle Cart will hold quantity (16) M16's on each side, for a total of 32 per cart. Special configurations are also available which will house the MI or MI4 weapon, 12 on each side, for a total of 24.

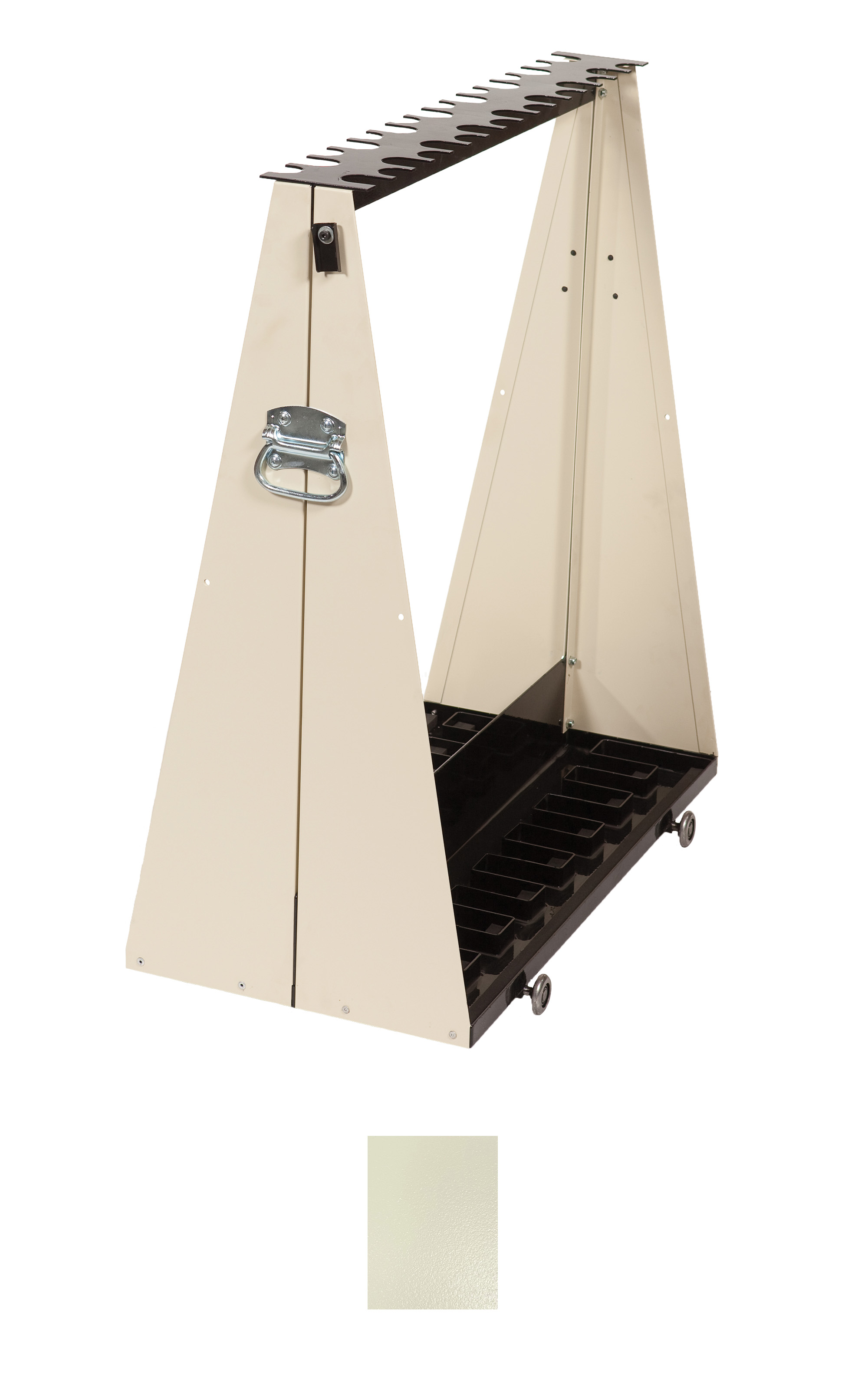

#WRC Standard Rifle Cart

Part # 489-124-WRC (holds 16 on each side)

Shipping Wt. 120 lbs

Shipping Cub 18



      M1/M14 Rifle Cart Assembly

     Part # 489-124-M1/M14

     (holds 12 on each side)




    M4 Rifle Cart Assembly

   Part # 489-124-M4

   (ten on each side)






Rifle side of car will house 14 weapons (14 slots for weapons)

489-124-SD-S -  28 1/2 Hi Barrel Support
489-124-SD-T - 36 /2 Hi Barrel Support

Shipping Wt. 120 lbs. with canisters
Shipping Cube: 18
Optional: With RCPI-12 lbs

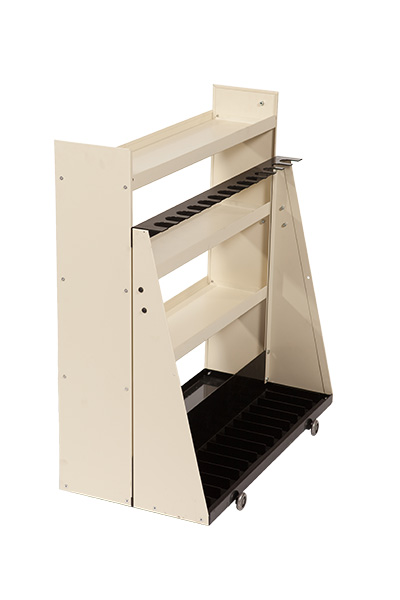

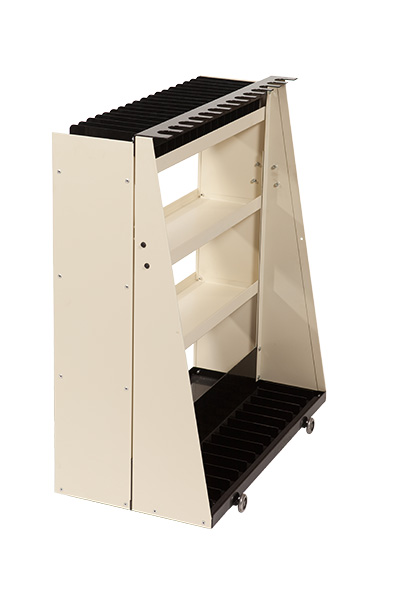

"S" Low                                                       "T" High


Low Barrel Support                                  High Barrel Support

Stores 20 pistols if insert is placed on top shelf, 18 if placed on lower shelf

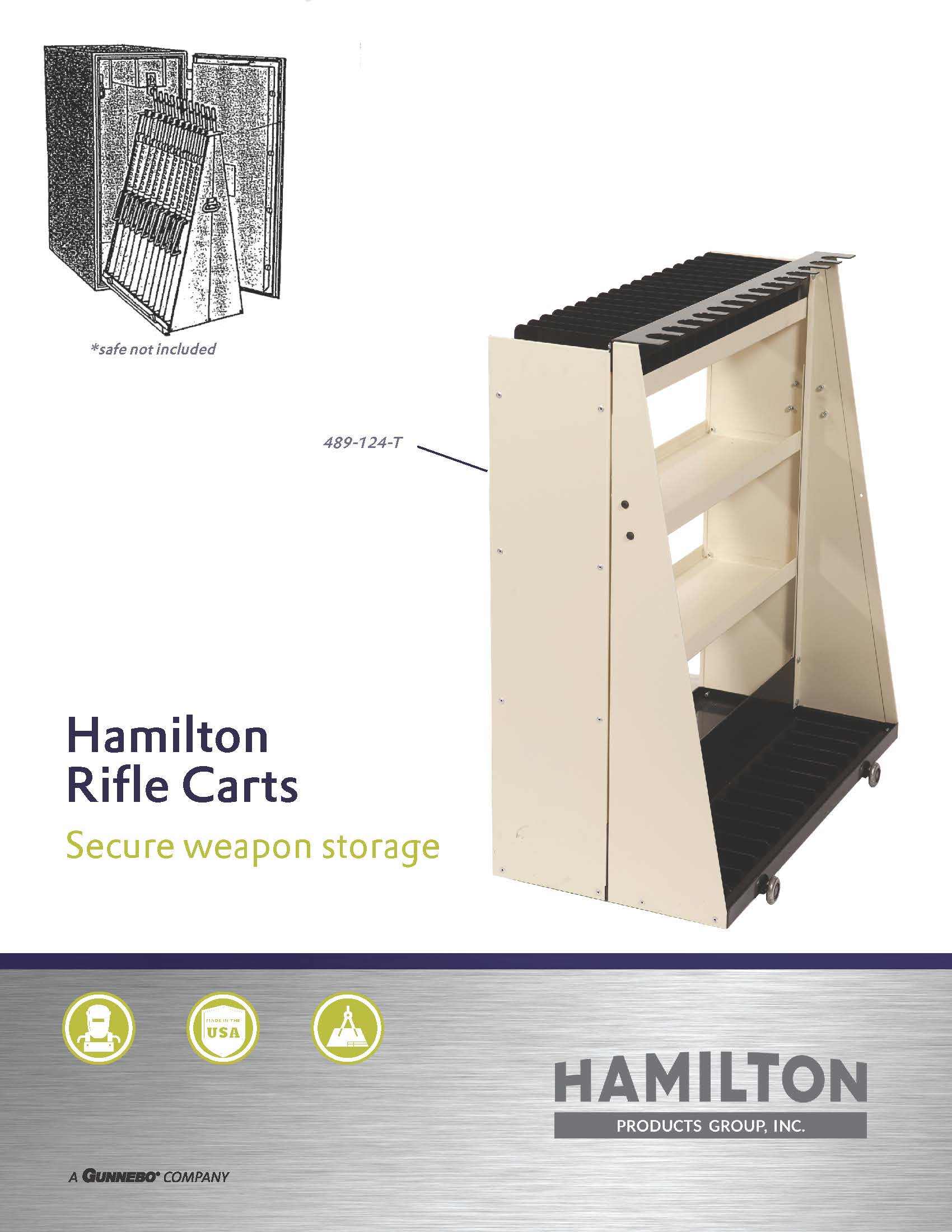

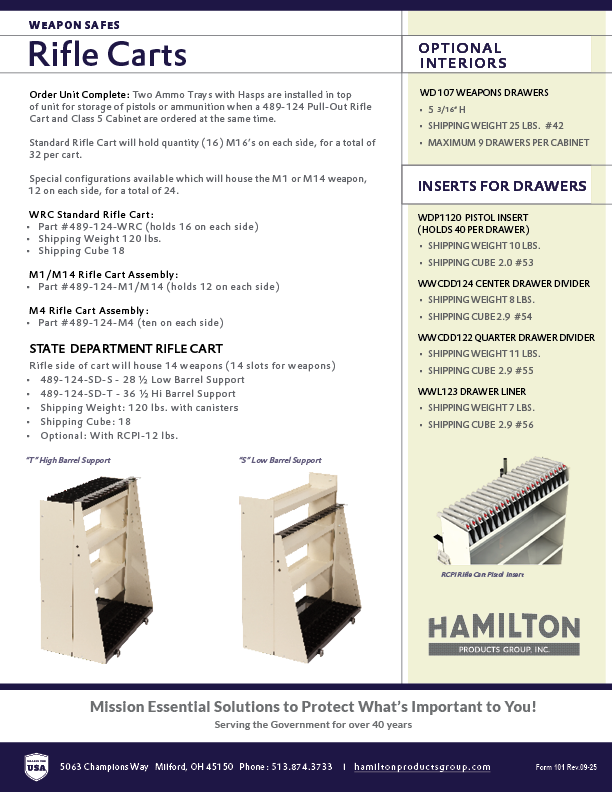

 Downloadable Brochure

  • Class 5 Protection - Security Level
  • Lock Specification
  • Shipping & Delivery

This is a U.S. Government class 5 cabinet which has been approved by GSA under Federal Specification AA-F-358H. It affords the following protection:

  • 30 man-minutes against covert entry.
  • 20 man - hours against surreptitious entry.
  • 10 man - minutes against forced entry.

Federal Specification FF-L-2740 does not apply to the Class 5 Weapons Cabinet. The lock required must meet U.L. standard 768 for combination locks.

Equipped with S&G 2937 Lock | Not available with X-09 or S&G 2740 locks.

F.O.B. ORIGIN: Milford, Ohio 45150
Delivery area to lower 48 contiguous States, Washington D.C., Alaska, Hawaii & Puerto Rico

All products are shipped F.O.B. Origin

Additional Charges for Inside & Sidewalk Delivery
Additional charges for sidewalk or inside delivery. It is the responsibility of the recipient to remove the equipment from the truck. If you would like to request assistance in placing your order inside an office, you must specify "INSIDE DELIVERY REQUESTED" on your order. This additional service is at the customer's expense. You may select your own cartage or Van Line, or we can assist you. Hamilton Products Group, Inc. cannot assume responsibility for the charges and the exact expense will be billed to the purchaser

Additional Charges
Export Packing Charge: Priced upon request
All additional delivery services are billed at the customer's expense
